Supply Low Price Furnace Liner Refractory Silica Ramming Mass For Construction Of Various Kilns Lining

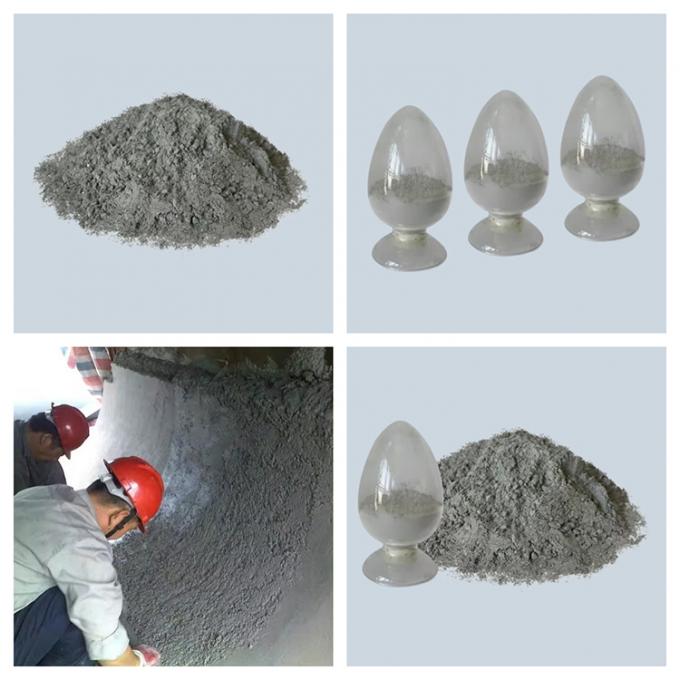

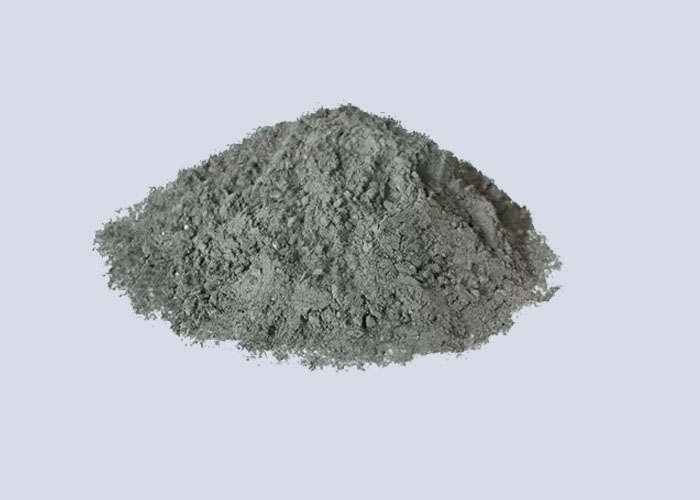

Silica ramming mass is made of quartz (SiO2) refractory raw material as aggregate and a certain proportion of powder, binders and additives, which can be used?for construction of lining of various kilns. The silicon ramming mass introduced today is used in the working layer of the tundish, and the service life can be up to 30 hours after the overall casting, which is generally applicable to small and medium-sized tundish.
Product Features of Silica Ramming Mass For Various Kilns Lining
1. Convenient construction, mechanized operation and improved working efficiency
2. Compact sintering, erosion resistance, and long service life
3. Do not pollute the molten steel, and meet the needs of clean steel continuous casting
4. The working layer does not crack during use, and it is easy to turn over the package
Advantages of Silica Ramming Mass
1. Convenient construction and time saving
2. Quick baking can improve the operating rate of furnace lining
3. The constructed lining is easy to be repaired when the lining is removed
Applications of Rongsheng Refractory Ramming Mass
Ramming Mass mainly used for furnace lining of boiler, blast furnace, hot blast stove, heating furnace, ceramic kiln and various industrial furnaces.Applicable to all kinds of carbon steel, low manganese steel, alloy steel, alloy cast iron, high-speed tool steel and stainless steel.
Physical and chemical index
Aluminum-magnesia ramming material, high-alumina (or corundum) – silicon carbide – carbon ramming material, alkali refractory ramming material and zirconium mullite ramming material.
Name |
Composition | Application |
Note |
Carbon packing material |
Metallurgical coke powder (less than 4mm) 80% |
The gap between blast furnace base clay brick masonry and furnace shell, blast furnace hearth, the gap between furnace hearth clay brick or high alumina masonry and surrounding cooling wall |
Volume ratio |
Carbon ramming mass |
Metallurgical coke powder (less than 4mm) 85% |
Blast furnace lining |
(mass ratio) |
Magnesia ramming mass |
Magnesia sand (granularity ≤5mm) 85% |
Lateral lifting open hearth furnace bottom |
(Volume ratio) |
Magnesia sand 89%~91.5% |
Electric furnace bottom | (mass ratio) | |
Magnesia sand 89% iron oxide powder 2% dehydrated coal tar 9% |
Electric furnace bottom and ramp |
Mass ratio |
|
Chrome plastic refractory |
Chromite 97% binding clay 3% water glass 7% |
Soaking pit hearth central part, burner nozzle surrounding |
(mass ratio) |
Magnesia ramming mass |
Magnesia sand 50% clay refractory mortar 30% laterite 5% coke powder 5% Iron oxide powder 10% Brine (for extra addition) |
Soaking pit hearth central part, burner nozzle surrounding |
(mass ratio) |
Chrome oxide ramming mass |
Chromite (granularity ≤3mm) 90% Iron oxide (granularity ≤3mm) 5% |
Circular heating furnace bottom | (volume ratio) chromite ingredient requirement: Cr2O3>35% |
